Waterjet cutting
Waterjet cutting enables sheet metal cuts with the highest precision. Fast service and reasonable prices. Simply upload CAD file and receive quote within 48 hours.
1.500+
Satisfied customers
5.500+
Available machines
0,11%
Complaint rate
Audited suppliers
Global network with over 500 audited suppliers
Attractive prices
Highest quality and competitive prices for all manufacturing processes
Fast delivery
With Robtrix you reduce your delivery time by up to 50%
Wide range of materials
All plastics and metals available in over 600 materials
Sheets with on-demand delivery
Material-friendly production by means of waterjet cutting

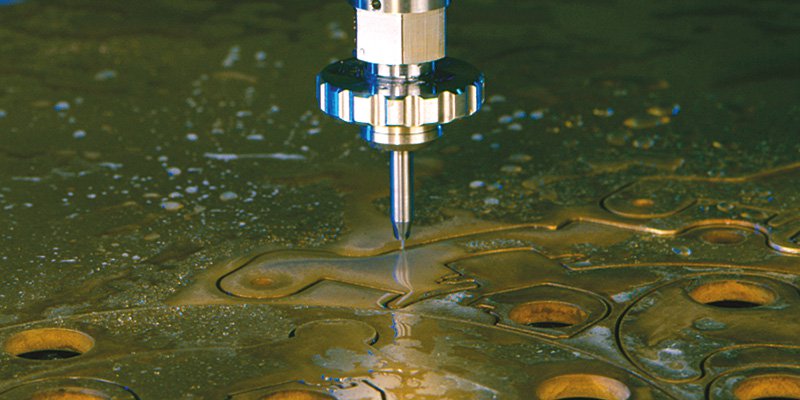

Computer-controlled waterjet cutting is a fast, precise and extremely economical CNC manufacturing method suitable for prototypes and series production. As a cold cutting process, it is particularly gentle on the material and, thanks to its great precision, even complex shapes and minimal radii are no problem.
Waterjet cutting is basically suitable for all metals and plastics. Even particularly hard materials such as marble and titanium are cut by the CNC Waterjet machine tools with maximum precision.
Waterjet cutting
Technical data
| Traverse paths: | X-axis: up to 4,000 mm Y-axis: up to 6,000 mm Z-axis: up to 200 mm |
|
| Material thickness: | 0.5 to 200 mm | |
| Tolerances: | from +/- 0,05 mm | |
| Surface roughness: | up to Ra 0.8 / Rz3.2 | |
| Batch sizes: | from 1 piece |
Our materials
Available materials
| Aluminum | Ceramics |
| Bronze | Plastics |
| Stainless steel | Copper |
| Steel | Brass |
| Casting | Nickel silver |
| Hard fabric | Titanium |
| Inconel | other materials on request |
Briefly explained
How does waterjet cutting work?

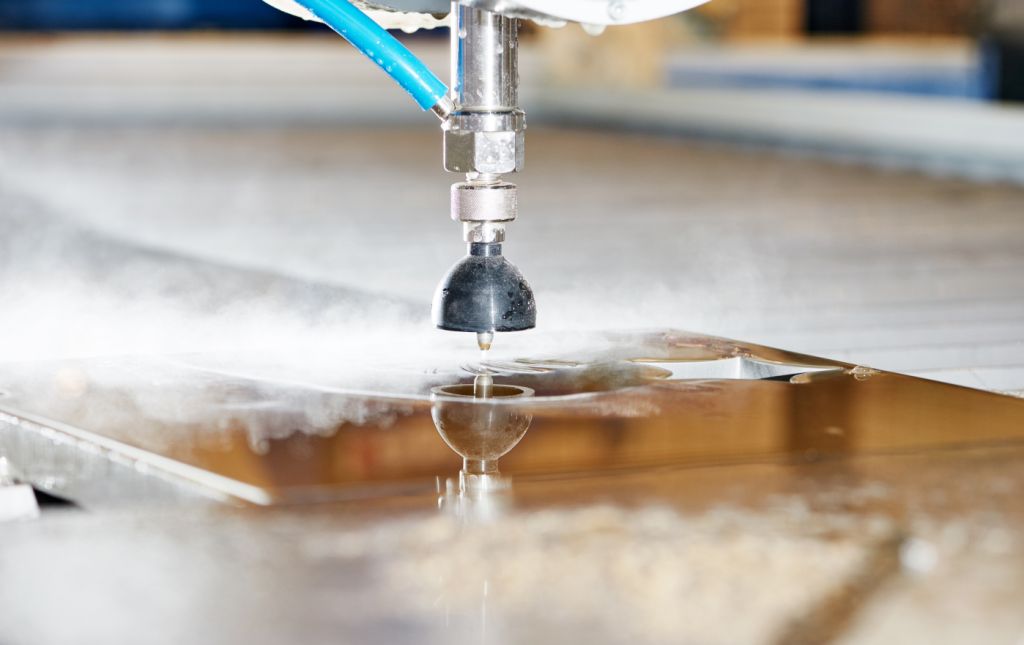

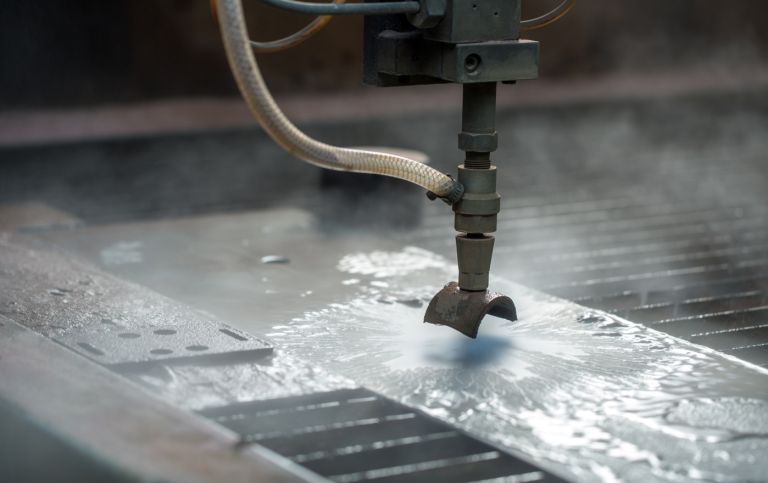

In waterjet cutting, an extreme high-pressure water jet is used to cut through the material and shape it. The pressure at which the water jet hits the material surface is between 4,000 and 6,000 bar. The jet reaches exit velocities of up to 1,000 m/s.
Depending on the hardness of the starting material, pure water is used for cutting or a mixture of water and special sharp-edged garnet sand is used for abrasive cutting. Like all machining processes, it is a material-removing process, i.e. a subtractive process.
Waterjet cutting enables impressively burr-free cutting precision. Among a number of possible applications, waterjet cutting is therefore particularly suitable today, for example, for engraving in the finest quality.
Surface treatment
We get the best out of your components
Refinement, appearance, protection against wear and corrosion prophylaxis of the turned components are as much part of our core business as the production of components.
- ✔ Sandblasting
- ✔ Paint
- ✔ Anodizing
- ✔ Powder coating
- ✔ Electroless nickel
- ✔ Galvanizing
- ✔ Passivate
- ✔ Chromate
