Die Sinking EDM
Your trusted manufacturing provider. Streamlined workflows, superior craft, reliable scheduling, and competitive pricing powered by digital integration. Place your custom component orders online in just a few clicks.
When Precision Matters Most
Precision Die Sinking EDM for Complex 3D Cavities
Leveraging advanced CNC sinker EDM technology, we accurately form intricate 3D shapes, molds, and deep internal cavities in tough materials like hardened tool steel and titanium, where traditional milling reaches its limits.
Exceptional precision allows us to execute complex profiles, sharp internal corners, and delicate features with ease.
Take advantage of our extensive capabilities, offering multi-axis CNC die sinking EDM services tailored to your exact specifications.
Technical Capabilities & Supported Materials
At Robtrix, our custom CNC die sinking EDM operations are tailored precisely to your unique engineering standards. Rather than restricting your projects with rigid design limits, our high-precision spark eroding systems adapt to intricate mold geometries, strict manufacturing tolerances, and refined surface finish requirements.
Whether you need a single prototype die or full-scale series production, our scalable facilities are prepared to deliver on your goals. Feel free to reach out to our team to review your specific project requirements and technical specifications.
A Quick Overview
How Does Die Sinking EDM Work?
Die sinking EDM also known as sinker or ram EDM is a specialized thermal machining technique that uses custom shaped electrodes to form complex 3D cavities in conductive metals without mechanical force. Virtually any electrically conductive material, including hardened steels, copper alloys, and titanium, can be processed using this high-precision method.

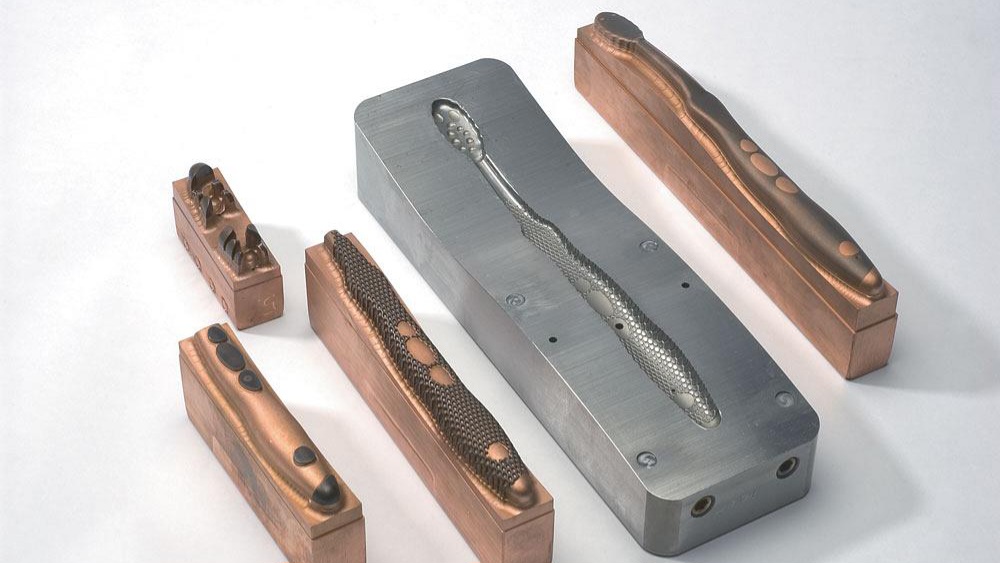

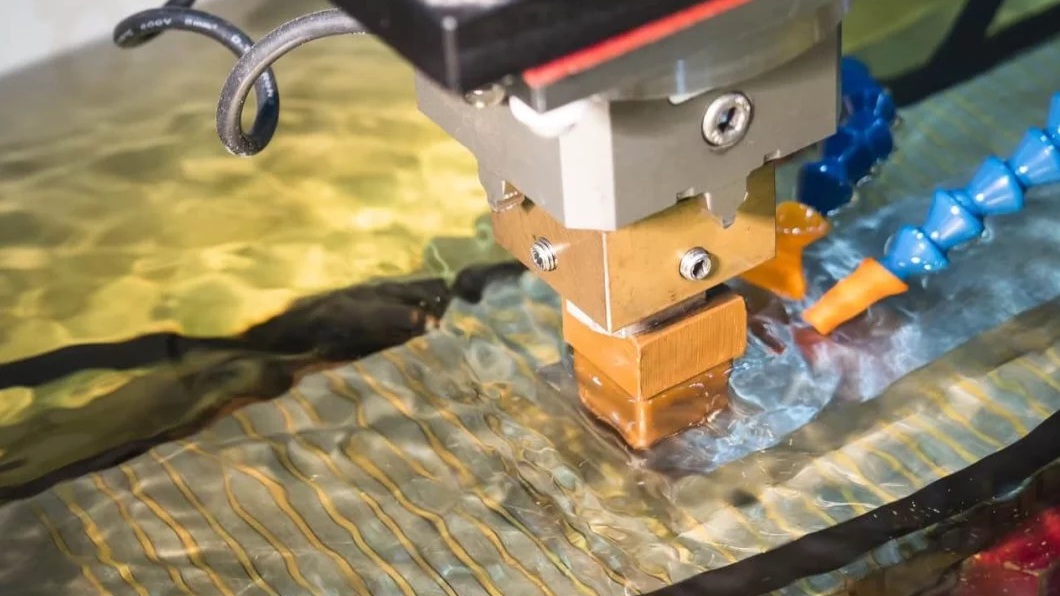

During the process, a custom-machined electrode (typically graphite or copper) shaped into the inverse of the target geometry approaches the workpiece submerged in a dielectric fluid. Across the microscopic gap, controlled electrical spark discharges generate intense localized heat reaching temperatures between 8,000°C and 12,000°C, instantly melting and eroding material to duplicate the exact shape of the tool.
Because the shaped electrode never makes physical contact with the metal, die sinking EDM eliminates tool pressure and mechanical deformation. This makes it the ideal solution for crafting detailed injection molds, stamping dies, blind cavities, and complex internal contours requiring extreme accuracy and tight tolerances.
Because the electrode never makes physical contact with the metal, die sinking EDM eliminates tool pressure and mechanical deformation. This makes it ideal for producing detailed injection molds, stamping dies, blind cavities, and complex internal contours requiring extreme accuracy and tight tolerances.
File formats
Why Choose Us
Key Benefits of Partnering With Us
On-Demand Production Capacity: Immediate production availability with flexible scaling whenever you need it.
Competitive Pricing: Cost-effective manufacturing solutions across all parts and production runs.
ISO 9001:2015 Certified: Stringent quality assurance procedures for precise and reliable results.
Single Point of Contact: One dedicated representative to streamline your entire manufacturing process.
Digital Convenience + Personal Service: Modern online workflows backed by direct, personal account management.
Global Supply Chain, Industry Standards: A robust international network delivering high-precision engineering and reliable quality.
